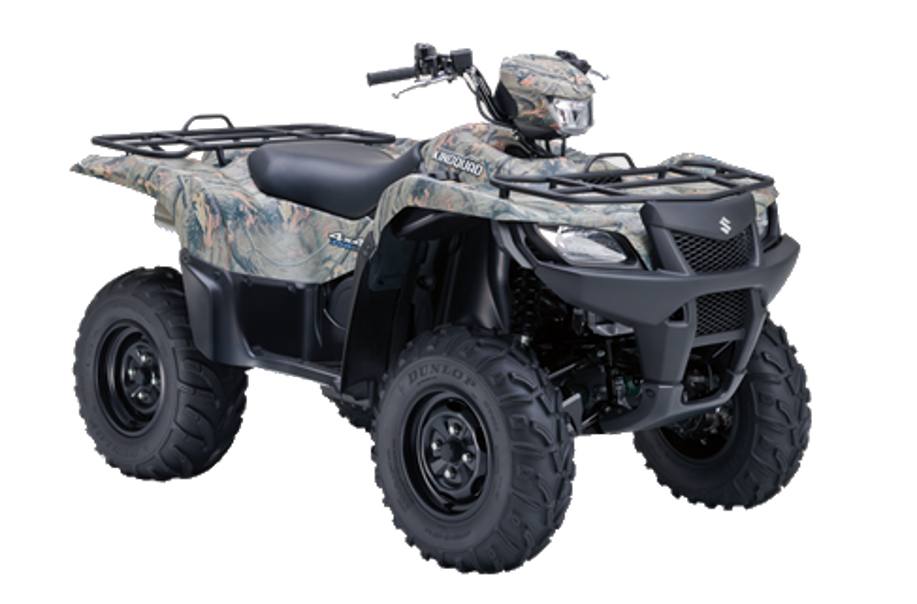

2011 Suzuki KingQuad 750AXi - Camo
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Once again, Suzuki is breaking new ground – this time with the incredible KingQuad 750AXi Power Steering. Its new advanced Suzuki Electric Power Steering system gives it lighter steering and even more responsive handling than ever.

  • Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support
  • Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency & includes lightweight magnesium valve cover
  • Fully independent, I-beam rear suspension with long suspension travel (7.7 inches) & includes 5-way preload adjustable shock absorbers and large diameter rear sway-bar
  • Independent double A-arm front suspension with 6.7 inches of wheel travel & includes large diameter shock absorbers with 5-way spring preload adjustment
  • Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain
  • Pressed-aluminum wheels for reduced unsprung weight
  • Sealed, multi-plate rear brake system provides high durability, reduced unsprung weight and low-maintenance
  • Advanced engine brake system minimizes free-wheeling to reduce downhill speed
  • Plasma-spray cylinder coating (SPSC) allows lightweight cylinder construction without a sleeve for improved resistance to heat and friction
  • Cylinder canted forward 48-degrees for lower center of gravity, reduced engine height and lower seat height, and is rubber mounted with two balancer shafts for smooth performance
  • Electric 2WD, 4WD and differential-lock 4WD - convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition
  • QuadMatic, CVT-type automatic transmission designed for maximum versatility and convenience, fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse
  • SCEM (Suzuki Composite Electrochemical Material) cylinder allows for improved heat transfer, lightweight and tighter piston clearance
  • Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height
  • Suzuki fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts
  • Torque-sensing front differential offers powerful traction when needed and light steering when desired
  • Minimum Age: 16 Years Old
  • Powerful KingQuad engine features a large 104mm bore for a displacement of 722cc providing maximum performance and throttle response
  • RealTree Hardwoods HD Enhanced Camo bodywork is ideal for sportsmen
  • The new Suzuki Electric Power Steering system delivers a lighter steering effort in a variety of conditions to reduce rider fatigue
  • Ultra-efficient air filter features both paper and foam elements for optimum air filter performance
  • Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light additional 40W multi-reflector, handlebar-mounted auxiliary light
  • Easy-to-read LCD instrument display includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range (H,L,N,R) and drive mode (4WD, 4WD lock) LED indicators for neutral, reverse, 4WD lock, FI/water temp
  • Large 4.6 gallon fuel tank positioned below seat for a low center-of-gravity includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge
  • Large, 200mm diameter front disc brakes with single-piston calipers designed for strong, reliable braking performance
  • Rugged steel-tube racks with attractive, high-quality wrinkle paint finish
Specifications
  • Brakes Front: Disc brake, twin
  • Brakes Rear: Sealed oil-bathed multi-disc
  • Color: Camo
  • Curb Weight: 672 lbs. (305 kg)
  • Final Drive: Shaft drive
  • Fuel Tank Capacity: 4.6 gal. (17.5 l)
  • Ground Clearance: 11.0 in. (280 mm)
  • Overall Length: 83.3 in. (2115 mm)
  • Overall Width: 47.6 in. (1210 mm)
  • Seat Height: 36.2 in. (920 mm)
  • Suspension Front: Independent, double wishbone, coil spring, oil damped
  • Suspension Rear: Independent, double wishbone, coil spring, oil damped
  • Tires Front: AT25 x 8-12, tubeless
  • Tires Rear: AT25 x 10-12, tubeless
  • Transmission: Automatic variable ratio (V-belt), with high-/low-range, and reverse
  • Wheelbase: 50.6 in. (1285 mm)
  • Bore Stroke: 4.094 in. (104.0 mm) x 3.346 in (85.0 mm)
  • Compression Ratio: 10.0 : 1
  • Engine: 722cc (44.1 cu. in.), 4-stroke, liquid-cooled, DOHC
  • Fuel System: Fuel injection
  • Ignition: Electronic ignition (CDI)
  • Lubrication: Wet Sump
  • Starter: Electric starter
  • Warranty: 12 month limited warranty.

Specifications

Engine
Engine Type 722cc (44.1 cu. in.), 4-stroke, liquid-cooled, DOHC
Bore x Stroke 4.094 in. (104.0 mm) x 3.346 in (85.0 mm)
Fuel System Fuel injection
Starting System Ignition: Electronic ignition (CDI); Starter: Electric starter
Chassis
Front Suspension Independent, double wishbone, coil spring, oil damped
Front Brake Type Disc brake, twin
Front Tires AT25 x 8-12, tubeless
Rear Suspension Independent, double wishbone, coil spring, oil damped
Rear Brake Type Sealed oil-bathed multi-disc
Rear Tires AT25 x 10-12, tubeless
Dimensions/Capacities
Dry Weight 672 lbs. (305 kg)
Fuel Capacity 4.6 gal. (17.5 l)
Ground Clearance 11.0 in. (280 mm)
Machine Dimensions (LxWxH) 83.3 in. L x 47.6 in. W (2115 mm x 1210 mm)
Wheelbase 50.6 in. (1285 mm)
Drive Train
Final Drive Shaft drive
Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
General
Colors Camo
Warranty 12 month limited warranty.

Compare Models

 Print








Year 2011
Manufacturer Suzuki
Model KingQuad 750AXi - Camo
Style Utility
Chassis
Front Suspension Independent, double wishbone, coil spring, oil damped
Front Travel
Front Brake Type Disc brake, twin
Front Tires AT25 x 8-12, tubeless
Rear Suspension Independent, double wishbone, coil spring, oil damped
Rear Travel
Rear Brake Type Sealed oil-bathed multi-disc
Rear Tires AT25 x 10-12, tubeless
Frame
Dimensions/Capacities
Dry Weight 672 lbs. (305 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 4.6 gal. (17.5 l)
Ground Clearance 11.0 in. (280 mm)
Machine Dimensions (LxWxH) 83.3 in. L x 47.6 in. W (2115 mm x 1210 mm)
Wheelbase 50.6 in. (1285 mm)
Drive Train
Drive Train
Final Drive Shaft drive
Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
Engine
Engine Type 722cc (44.1 cu. in.), 4-stroke, liquid-cooled, DOHC
Displacement
Bore x Stroke 4.094 in. (104.0 mm) x 3.346 in (85.0 mm)
Cylinders
Engine Cooling
Fuel System Fuel injection
Starting System Ignition: Electronic ignition (CDI); Starter: Electric starter
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Camo
Warranty 12 month limited warranty.
